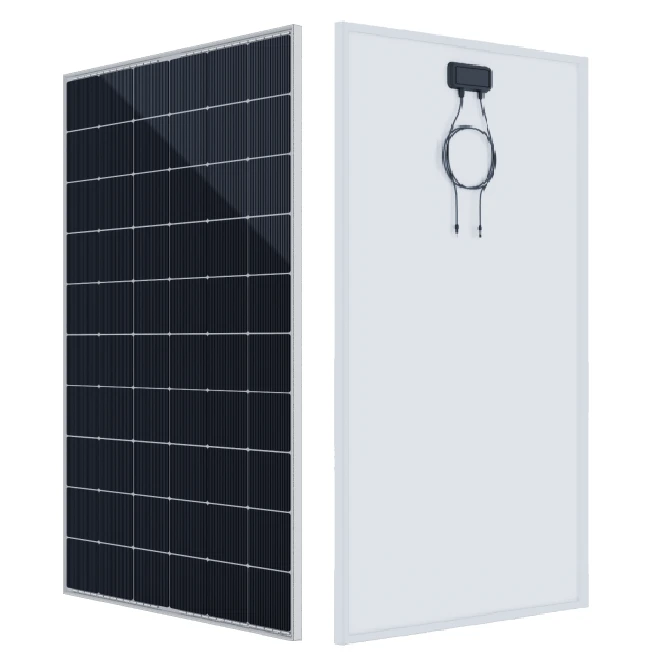

Photovoltaic Module HVL - Efficient Energy Solution for Grid and Off-Grid Systems

Solar Power Components

Manufacturer: HEVEL LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Photovoltaic module HVL [1] 1500, where: HVL - conventional designation of the module, [1] - type of the module according to ite

Description

FEMs are designed for grid and autonomous power supply systems at rated voltage up to 1000V. FEMs are made by heterojunction technology, photoactive layer of FEM is located between glass substrate and polymer sheet material. Along the contour of the FEM is framed by an aluminium fixing profile.

A fixed terminal box with wires and safety connectors is placed on the polymer material. The unique technology of creating heterostructured solar modules on crystalline silicon developed by the own scientific and technical centre of Hevel Group of Companies is used in production. Modules manufactured according to this technology have high efficiency (cell efficiency reaches 23.5% in production), work effectively even under diffused light, have minimal degradation, long service life, low temperature coefficient, which allows to have high performance in hot climates.

Specifications

Short-circuit current tolerance

5 %

Tolerance of no-load voltage

5 %

Production capacity tolerance

5 %

Maximum power current

8.86 A

Short-circuit current

9.29 A

Maximum power voltage

36.74 V

No-load voltage

44.08 V

EFFICIENCY

19.33 %

Technology

HJT

Maximum weight

19 kg

Number of cells

60 pcs

Module type

glass melon sheet

Thickness

42 mm

Width

1002 mm

Length

1671 mm

Power

240...325 W

Max. static load rear

2530

Max. static load face

3600

Maximum fuse current

20 A

Maximum system voltage

1000 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
