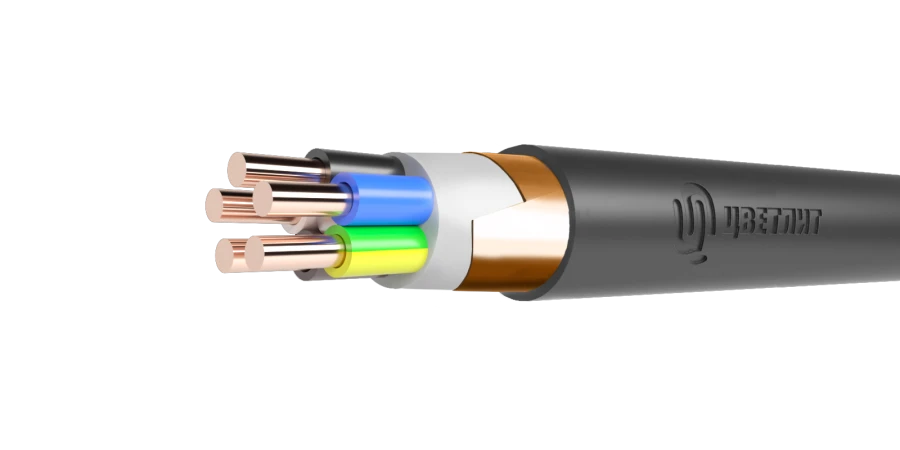

Power shielded cable with PVC insulation 1kV AVVGE 3x10

Available for Import

Power shielded cable with PVC insulation 1kV AVVGE 3x10

Aluminium Power Cables 1kV

Manufacturer: TSVETLIT OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Shielded Power Cable with PVC Insulation 1kV AVVG 2x35 Power shielded cable with PVC insulation 660V AVVGE 1x50 Power shielded cable with PVC insulation 660V AVVGE 2x16 Power shielded cable with PVC insulation 1kV AVVGE 1x95 Power shielded cable with PVC insulation 1kV AVVGE 5?2.5

Power shielded cable with PVC insulation 660V AVVGE 2x6 Power shielded cable with PVC insulation 1kV AVVGE 2x10 Power shielded cable with PVC insulation 660V AVVGE 2x25 Power shielded cable with PVC insulation 660V AVVGE 1x35 Power shielded cable with PVC insulation 660V AVVGE 4x6 Power shielded cable with PVC insulation 1kV AVVGE 1x2.5 Power shielded cable with PVC insulation 660V AVVGE 1x10 Power shielded cable with PVC insulation 660V AVVGE 2x2.5 Power shielded cable with PVC insulation 660V AVVGE 1x16 Power shielded cable with PVC insulation 660V AVVGE 5?2.5 Power shielded cable with PVC insulation 1kV AVVGE 1x120 Power shielded cable with PVC insulation 660V AVVGE 3x25 Power shielded cable with PVC insulation 1kV AVVGE 1x70 Power shielded cable with PVC insulation 1kV AVVGE 4x35 Power shielded cable with PVC insulation 660V AVVGE 4x35 Power shielded cable with PVC insulation 1kV AVVGE 5x35 Power shielded cable with PVC insulation 1kV AVVGE 4x6 Power shielded cable with PVC insulation 1kV AVVGE 5x4 Power shielded cable with PVC insulation 660V AVVGE 4x25 Power shielded cable with PVC insulation 1kV AVVGE 5x25 Power shielded cable with PVC insulation 660V AVVGE 5x16 Power shielded cable with PVC insulation 1kV AVVGE 4x16 Power shielded cable with PVC insulation 660V AVVGE 5x6 Power shielded cable with PVC insulation 1kV AVVGE 3x16 Power shielded cable with PVC insulation 1kV AVVGE 1x150 Power shielded cable with PVC insulation 660V AVVGE 3x4 Power shielded cable with PVC insulation 660V AVVGE 1x6 Power shielded cable with PVC insulation 660V AVVGE 4x4 Power shielded cable with PVC insulation 1kV AVVGE 2x16 Power shielded cable with PVC insulation 660V AVVGE 2x10 Power shielded cable with PVC insulation 660V AVVGE 4x16 Power shielded cable with PVC insulation 660V AVVGE 3x6 Power shielded cable with PVC insulation 1kV AVVGE 1x4 Power shielded cable with PVC insulation 1kV AVVGE 3x35 Power shielded cable with PVC insulation 660V AVVGE 1x25 Power shielded cable with PVC insulation 1kV AVVGE 4x2.5 Power shielded cable with PVC insulation 1kV AVVGE 2x2.5 Power shielded cable with PVC insulation 1kV AVVGE 4x10 Power shielded cable with PVC insulation 1kV AVVGE 2x6 Power shielded cable with PVC insulation 660V AVVGE 4x2.5 Power shielded cable with PVC insulation 660V AVVGE 5x35 Power shielded cable with PVC insulation 1kV AVVGE 3x4 Power shielded cable with PVC insulation 660V AVVGE 2x4 Power shielded cable with PVC insulation 1kV AVVGE 4x4 Power shielded cable with PVC insulation 1kV AVVGE 2x4 Power shielded cable with PVC insulation 660V AVVGE 3x35 Power shielded cable with PVC insulation 660V AVVGE 1x4 Power shielded cable with PVC insulation 660V AVVGE 5x25 Power shielded cable with PVC insulation 660V AVVGE 1x2.5 Power shielded cable with PVC insulation 1kV AVVGE 1x6 Power shielded cable with PVC insulation 1kV AVVGE 5x6 Power shielded cable with PVC insulation 1kV AVVGE 3x25 Power shielded cable with PVC insulation 660V AVVGE 3?2.5 Power shielded cable with PVC insulation 1kV AVVGE 1x50 Power shielded cable with PVC insulation 660V AVVGE 5x4 Power shielded cable with PVC insulation 1kV AVVGE 5x10

Description

Cable with aluminium single-wire or multiwire cores, with insulation and sheath made of PVC plasticate. For laying single cable lines in dry and wet industrial premises, on special cable racks, in blockades, as well as for power supply of electrical installations in electrical circuits, where additional protection is required, preventing the spread of electromagnetic fields of the cable, as well as protection from the effects of external interference.

Specifications

Mark

AVVGE

Core material

Aluminum

Insulation material

PVC plasticate

Sheath material

PVC plasticate

Calculated weight

287 kg

Filler material

interfacial space filler made of PVC plasticate

Screen material

copper bands

Climatized version

UHL

Nominal voltage

1000 V

Ambient temperature during cable operation

OT -50 to +50 °C

Number of cores

3 pcs

Core cross section

10 mm²

Cable outer diameter

14.8 mm

Minimum permissible bending radius for installation

7.5 cable diameters

Fire hazard class according to GOST31565

?1.8.2.5.4

Longest permissible operating temperature of conductors

70 °C

Maximum permissible heating temperature of cable cores in overload mode

Flat grinder, Specialised grinder °C

Maximum heating temperature of cable cores at short circuit

160 °C

Maximum heating temperature of cable cores under the condition of non-fire in case of short circuit

350 °C

Twisting

insulated conductors twisted into a core

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
