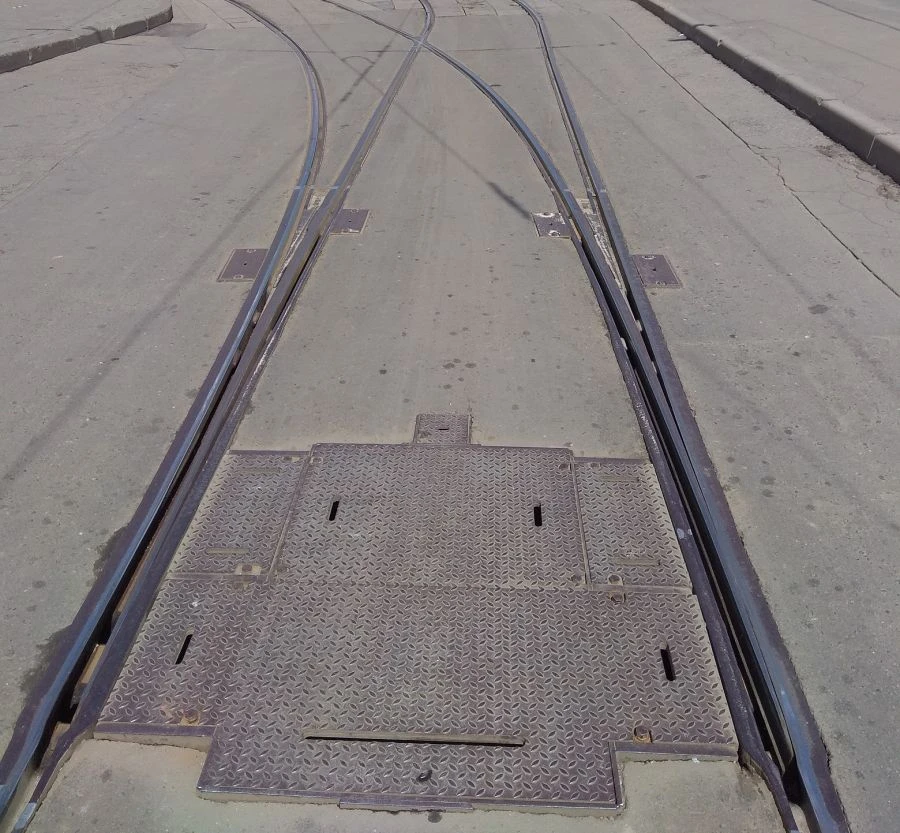

R50 Tram Switch with Flexible Points 30888a (8637.00.000/-01/-02/-03/-04/-05/-06/-07)

Available for Import

R50 Tram Switch with Flexible Points for Seamless Track Switching

Wide Gauge Track Switches

Manufacturer: ZTO LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Tramway R30 arrow crossing with flexible sharps according to 2394a (8622.00.000/-01/-02/-03/-04/-05/-06/-07/-07/-08/-09/-09/-10/ Tramway tram line switch R30 with flexible sharps according to 640b (8642.00.000/-01/-02/-03/-03/-04/-05/-06/-07) Tramway R30 arrow crossing with flexible sharps according to 878a (8632.00.000/-01/-02/-03/-04/-05/-06/-07)

Description

Tramway R50 arrow crossing with flexible sharps according to 30888a epub (project 8637.00.000) is designed for transferring trams from one track to another. It consists of an outer and inner body with girdles (feathers) and a transfer mechanism. The bodies are made in the form of castings from high-manganese steel with welded rail ends and are fixed on carriages.

Turning sharps (feathers) are made of wear-resistant rolled steel. The switch can be equipped with a system of electric heating of sharps (feathers). The switch is operated outdoors in macroclimatic regions of temperate and cold climate as a product UHL1 according to GOST 15150-69.

The transfer is designed for the passage of rolling stock with wheel bands according to GOST 25712-88.

Specifications

Type of product according to PP RF 616

Broad gauge switches

Type

Streetcar

View in the direction of a side or crossing track

Right/Left

Rail type

?62

Type of timber (base)

Universal reinforced concrete, monolithic concrete, wooden

Cross type by angle

Spicy

Cross type by construction

With welded rail ends

Arrow design

With flexible sharps

Type of single transfer

Ordinary

View

Single
