Regulating Valve with Electric Drive T-138bmE Available for Import

Regulating Valve with Electric Drive T-138bmE for Efficient Flow Control

Regulating Valves
Manufacturer: TKZ LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Control valve T-141bmE Control valve T-137bmE Control valve T-135bmE Control valve T-136bmE

Description

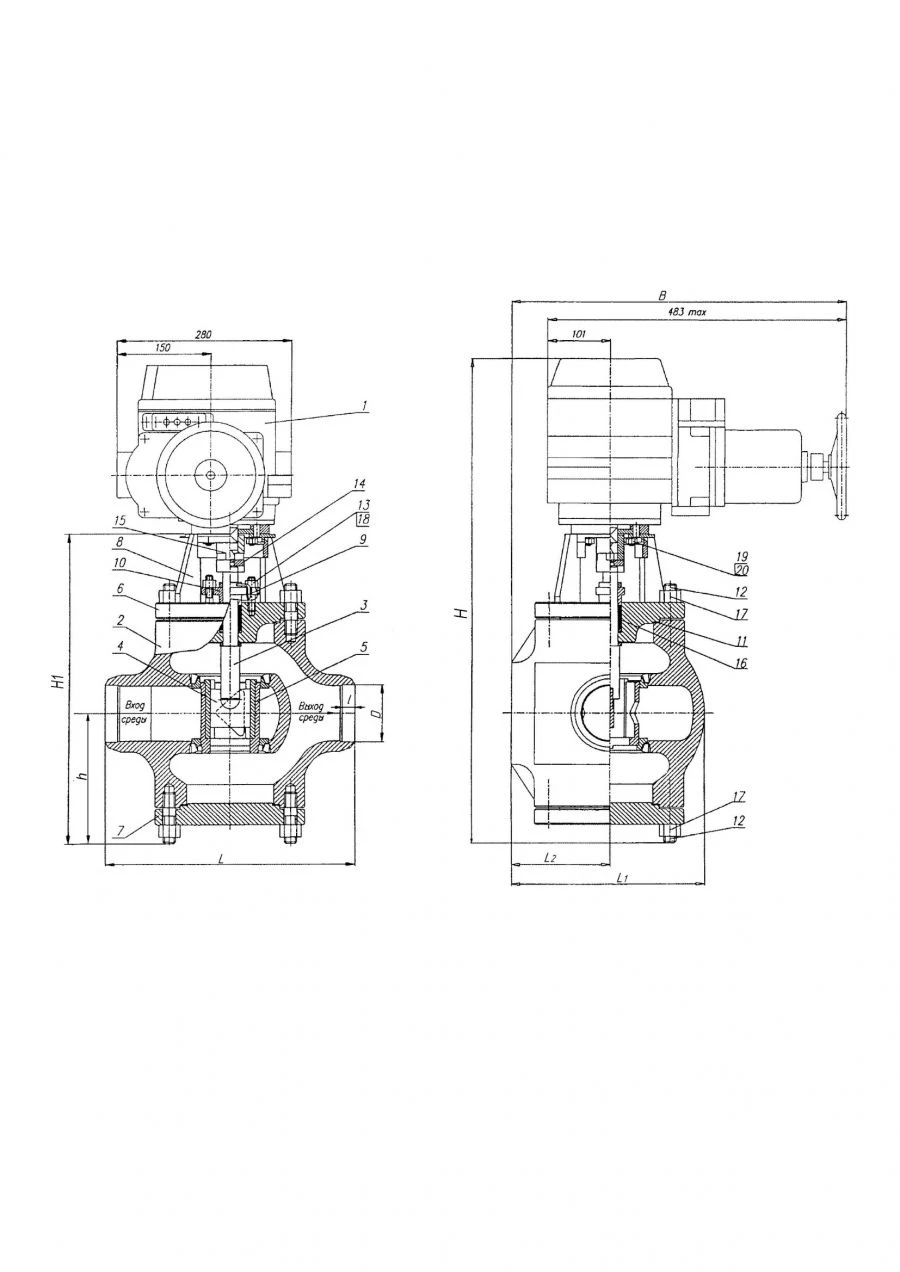

Control valves with built-in electric actuator are designed for flow control and maintenance of condensate level in LDPE and HDPE. The principle of operation of the regulating valve is based on changing the regulated flow of the working medium by rotating the spool around its own axis. The maximum angle of rotation of the spool is 90 degrees. Control of regulating valves with built-in electric actuator is carried out by means of electric actuators ????.

Specifications

Weight
321 kg
Material
25L steel
Climatic version
U3, T3
Nominal diameter
300 mm
Throughput
362
Pressure rating
10 MPa
