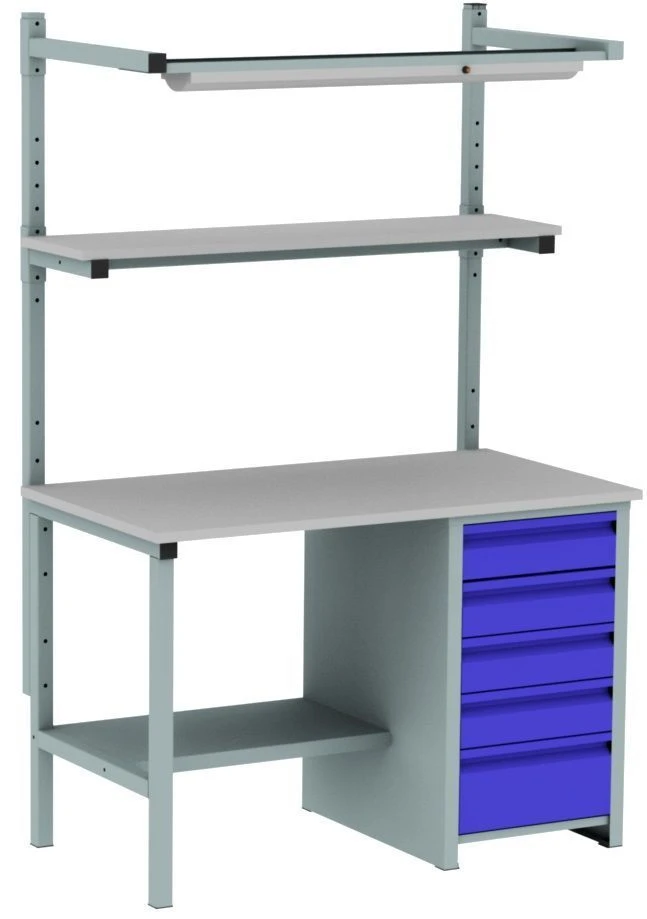

Single-column Assembly Table SM-3 for Efficient Assembly Work

Top - polished chipboard faced with laminated conductive plastic of German manufacture. The thickness of chipboard - 22 mm, the thickness of plastic - 1 mm. The edges of the table top are lined with 2 mm thick PVC edging.

Colour of plastic and edging: light grey. The maximum distributed load on the table top is 300 kg. Height of the table top from the floor level, mm...800 Stationary cabinet is designed for storing tools and components.

Pull-out drawers of sizes A, B. Made of cold-rolled steel sheet with powder enamel coating RAL-5017. They have full extension ball guides, maximum distribution load per drawer is 20 kg.

Internal dimensions of drawer type A (WxHxH), mm..........364×120×600 Internal dimensions of drawer type B (WxHxG), mm..........364×180×600 Quantity of drawers of A type - 4 pcs, B type - 1 pc.
