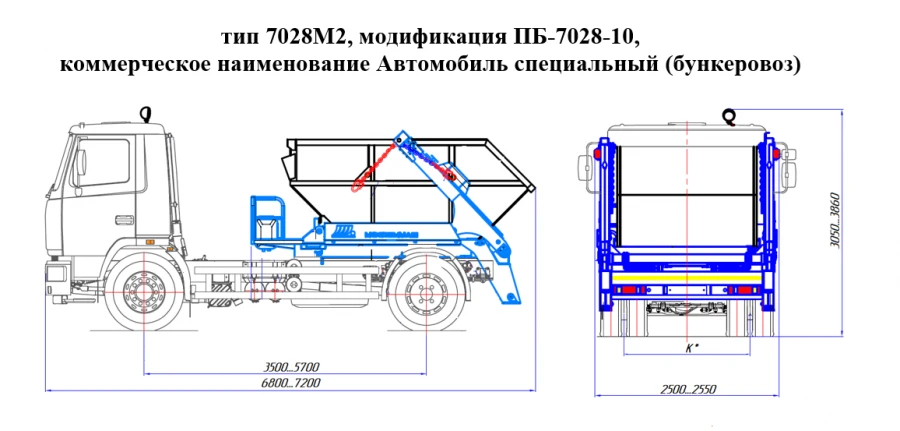

Special Vehicle (Bunker Truck) PB-7028-10 on MAZ 5340 Chassis 5340C2, 534025

Available for Import

Special Vehicle (Bunker Truck) PB-7028-10 for Efficient Loading and Unloading

Municipal Road Vehicles

Manufacturer: KOMMACH LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

gantry type loading and unloading equipment for loading, transporting and removing removable hoppers with loads of various purposes

Specifications

Type of product according to PP RF 616

7028?2

Type of product according to PP RF 616

Garbage trucks

Machine type

7028?2

Base chassis type

MAZ 5N32

Engine type

Four-stroke diesel engine

Type of garbage truck equipment

gantry-type material handling equipment

Wheel arrangement

4x2/rear

Wheel arrangement

4 x 2 / rear

Clutch (brand, type)

Sachs, Donmez, MF-395, MFZ-430; YAMZ-183, 184, friction, dry, single disk

Transmission (make, type)

ZF, 9S1310TO; 9S1315TO; EATON, ESO12209;Shaanxi Fast Gear Co., 9JS135A; 9JS135TA; 9JSD135A; 9JSD135TA; 9JS150F; 9JSD150F; 9JS180A; 9JS180TA; 9JSD180A; 9JSD180TA; 9JS200T; 9JSD200T; 9JSD200T; 9JSDX200T; 9JS200A; 9JSD200A; 9JSDX200A; 9JSD200TA; 9JSD200TA; 9J

Suspension

dependent, spring-loaded, with hydraulic telescopic shock absorbers, with or without transverse stability stabilizer

Suspension

dependent, spring-loaded, with or without hydraulic telescopic shock absorbers, with or without transverse stability stabilizer or dependent, pneumatic with hydraulic telescopic shock absorbers, with or without transverse stability stabilizer

Steering (description)

Power assisted

Steering mechanism (type)

steering mechanism of screw-ball nut-rack-sector type; MAZ: 64221-3400008-02, 64221-3400010, 64221-3400010-10, 64229- 3400008, 64229-3400010-01 or SNKF: 453461.700, 453461.700-35, 453461.720-20, 453461.400, 453461.400-10, 453461.400-40 or ZF, BOSCH:

Brake systems

dual-circuit, pneumatically actuated, with separation into axle circuits, ABS, with or without ESP (ESC) stability system, disc or drum brakes on all wheels.

Brake systems

One of the service brake system circuits or parking brake system

Brake systems

drive from energy accumulators to rear axle wheel brakes

Brake systems

газодинамический тормоз, установленный в выпускной системе двигателя; и/или компрессионное торможение двигателем; может устанавливаться ретардер

Vehicle equipment

emergency call device with automatic activation in case of overturning; maximum speed limitation device (maximum speed limitation is performed by electronic engine control system) optional: self-contained

Type

7028?2

Compression ratio

17.5

Compression ratio

Power supply system (type)

pressurized fuel injection

Vehicle length

6800…7200 mm

Vehicle width

2500…2550 mm

Vehicle height

3050…3860 mm

Base

3500…5700 mm

Front/rear wheel track

2000…2070 / 1790…1840 mm

Vehicle kerb weight

8700…9700 kg

Technically permissible maximum mass of the vehicle

16000…22000 kg

Technically permissible maximum mass on each axle of the vehicle, starting from the front axle

6000…9000 kg

Technically permissible maximum mass on each axle of the vehicle, starting from the front axle

10000…13000 kg

Maximum trailer weight

trailer towing is not provided kg

Internal combustion engine (make, type)

YaMZ, 53653; YaMZ, 53623; WEICHAI, MAZWeichai, WP7.270E51; turbocharged four-stroke diesel engine with intercooled air.

Number and arrangement of cylinders

6, inline

Cylinder displacement

6650

Cylinder displacement

7470

Maximum power, kW (min-1),

175(2300)

Maximum power, kW (min-1),

200,7(2300)

Maximum power, kW (min-1)

194(2100)

Maximum torque, N?m (min-1)

1044 (1300…1600)

Maximum torque, N?m (min-1)

1161 (1300…1600)

Maximum torque, N?m (min-1)

1160 (1200…1600)

Fuel

diesel fuel

Control unit (marking)

Bosch, EDC7UC31, 0 281 020 111; ITELMA, MD22, 3012.3765 001-01

Control unit (marking)

Bosch, WPEDC7

Fuel injector (type, marking)

Bosch, CR/CP3HS3/ L110/30-789S, 0 445 020 110

Fuel injector (type, marking)

Bosch, WPCPN2

Nozzles (type, marking)

Bosch, 0 445 120 178

Nozzles (type, marking)

Bosch, WPCRIN2

Air blower (type, marking)

NPO "Turbotekhnika", TKR 80; YaMZ, C21 xxx xx

Air blower (type, marking)

Honeywell, Garrett, GT35

Air filter (type, marking)

dry type, with paper filter element, Avtodizel (YaMZ), Remiz: 8421- 1109010, 8421-1109010-21, 8421-1109010-24, 8421-1109010-25, 8421-1109010-26; MAZ, Remiz: 238N-1109010, 238N-1109010-20, 238N-1109010-21, 238N-1109010-26

Air filter (type, marking)

Dry type, with paper filter element, MAZ, Remiz: 238N1109010, 238N1109010-20, 238N1109010-21, 238N1109010-26

Exhaust gas exhaust and neutralization system

with single silencer and exhaust gas neutralization system: Selective Catalytic Reduction (SCR) system

Neutralizers (marking) - 1 stage

muffler

Silencers (marking) - 1 stage

ROSSKATavto (RKa), Dinex Rus (DINEKS), MobilGazService (MGS): 5365- 1201010-01, 5365.1201010-02, 59345, 5365.1201010-03, 5365-1201010-21, 5365.1201010-22, 59346, 5365.1201010-23

Silencers (marking) - 1 stage

WEICHAI: WPSCR002 (610800220244, 610800220216, 1000971875)

Transmission

mechanical

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
