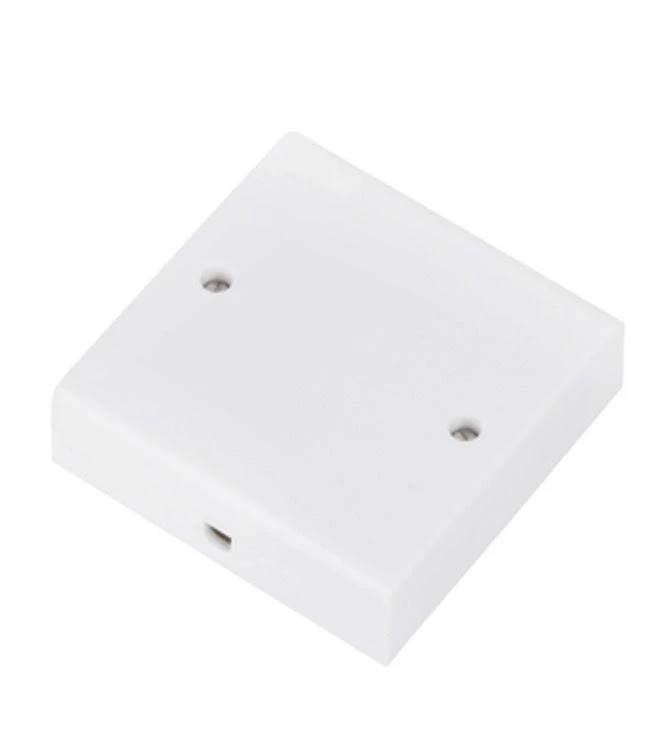

Standalone Access Control System Controller Z-5R (Relay Model)

Available for Import

Standalone Access Control System Controller Z-5R for Secure Access Management

Low-Voltage Electrical Panels

Manufacturer: OTK LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for use in access control and management systems (ACS) as a stand-alone controller with a power relay at the output to control external devices. As input devices can be connected contactor keys Dallas Touch Memory (keys DS1990A) or contactless proximity-card reader, emulating the protocol iButton (Dallas Touch Memory).

Specifications

External reader connection protocol

IButton (Dallas Touch Memory)

Number of keys/cards (max)

1364 pcs

Key support 1996

Armoured glass

Sound/light indication

Buzzer, LED

External LED and external buzzer control

Armoured glass

Output for lock connection

Relay (type 1C)

Switching current (24V /120V AC)

3 A

Jumper for selecting the lock type

Electromagnetic, electromechanical

Setting the duration of lock opening

0...220

DC supply voltage

8...18 V

Current consumption

45 mA

Enclosure dimensions

65x65x20 mm

Board dimensions

40x36x15 mm

Case material for "Z-5R (mod. Case)"

ABS plastic

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
