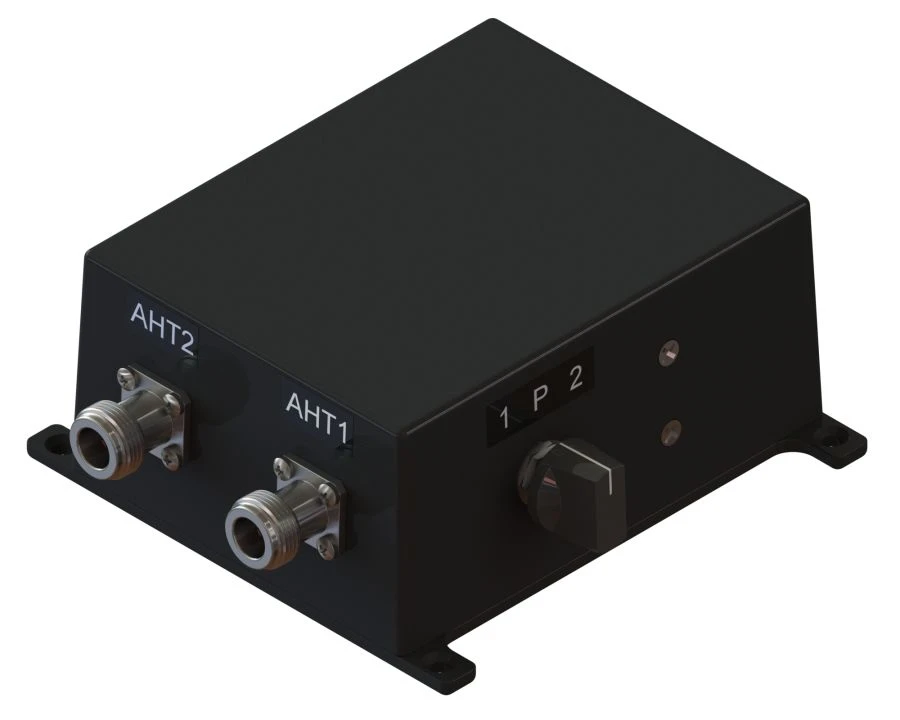

Summation Device US-2444 for RF Applications

Available for Import

Summation Device US-2444 for Coordinating RF Signals with Antenna Systems

Broadcast Equipment Parts

Manufacturer: Radio Communication Laboratory LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The summing device US-2444 KD ALVR.468529.002 is designed to match the transceiver with two antenna-feeder devices (hereinafter - AFU) having a wave impedance of 50 Ohm and operating in the GMV band.

Specifications

Type

Structurally US-2444 is made on phase-shifting high-frequency LC-chains, placed in a cast aluminium case, equipped with N-type socket connectors for connection to AFU and radio station. Galvanic connection of the central contacts of all connectors ob

Equipment

Summing device, passport, tare

Wave impedance

SBVVBG ohm

Operating frequency range

2.2...2.5

Signal division loss

Weakening of the useful signal

Not more than 0.4 dB

Maximum continuous power supply

SBVVBG W

VSWR

Not more than 1.3

Operating temperature

-50...60 °C

Weight

0.52 kg

Number of channels

2 pcs

Degree of protection of RS-2444 shell

According to the degree of protection of the shell RS-2444 meets the requirements of IP54 code according to GOST 14254-2015.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
