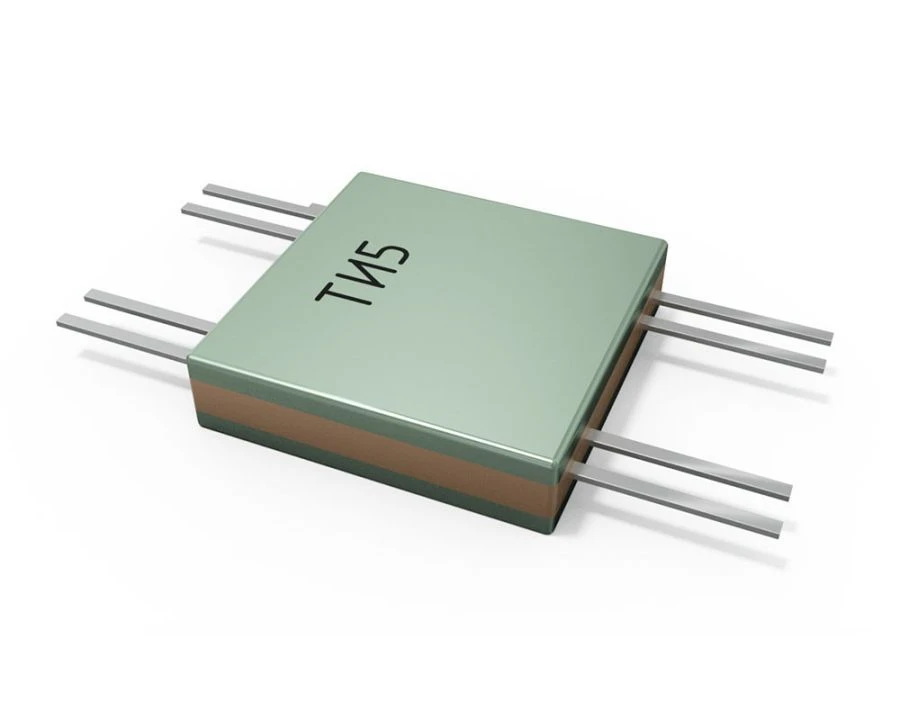

TI5 Pulse Transformers for Microelectronics - Reliable Performance

Electric Transformers

Manufacturer: PJSC "MSTATOR"

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Transformers pulse type TI5 are designed for operation in microelectronic equipment with operating voltage up to 24V and the product of pulse duration on the input voltage from 6.3 to 50.0 ?s?V. Quality category "VP" and "OS".

Specifications

Primary winding inductance, not less than

0.6 to 5.0(×10^-3)

Capacitance between primary and each secondary winding, not more than

40 to 250(×10^-12)

Scattering inductance, not more

0.6 to 40 (×10^-6)

Electrical insulation strength: DC voltage

150 V

Insulation resistance, not less

500 (×10^6) ohm

Magnetizing current, not more

10 (×10^-3) A

Product of pulse duration by input pulse voltage

6.3 to 50.0 (×10^-6)
