UEM Mifare/ICode/NFC ANT Reader Module for Security and Access Control

Security and Fire Control Panels

Manufacturer: MICROEM OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

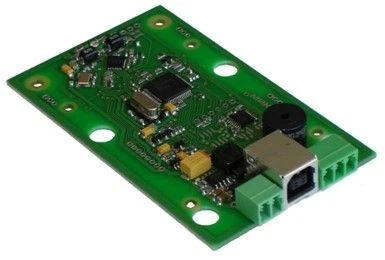

The UEM Mifare/ICode/NFC ANT reader modul? can be used in security systems, access control and management systems (ACS), electronic documents (passports, driving licences), club cards, transport payment systems and similar. It provides data exchange with contactless cards and smartphones with NFC technology support in order to extract unique identifiers from the open or protected memory area of cards and smartphones, and their subsequent transfer to the ACS controller for further decision-making on granting access. RFID reader UEM Mifare/ICode/NFC ANT reader modul? supports a full set of functions in accordance with the standards ISO14443, ISO15693

Specifications

Assignment

RFID reader is designed for use in security, access control and management systems (ACS), maintenance of electronic documents (passports, driver's licenses,), club and hotel cards, transportation payment systems.

Supported card types

Mifare Classic, Mifare Classic EV1, Mifare Ultralight, Mifare Ultralight C, Mifare Ultralight EV1, Mifare Plus, Mifare Plus EV1, Mifare DESfire, Mifare DESfire EV2, SmartMX, ICode SLI, ICode SLIX, NFC Forum Tag Types 2, 4

Supported protocols

ISO14443A/B, ISO15693, NFC P2P Passive Initiator (ISO18092).

Operating frequency

13.56 MHz

Current consumption

max. 300 mA

Power supply voltage

5-30 ?

Interfaces

USB/RS485

Antenna type

External

Working distance

Determined by antenna

Indication

Sound, light

Ambient air operating temperature range

-25 ºC to +85 ºC

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
