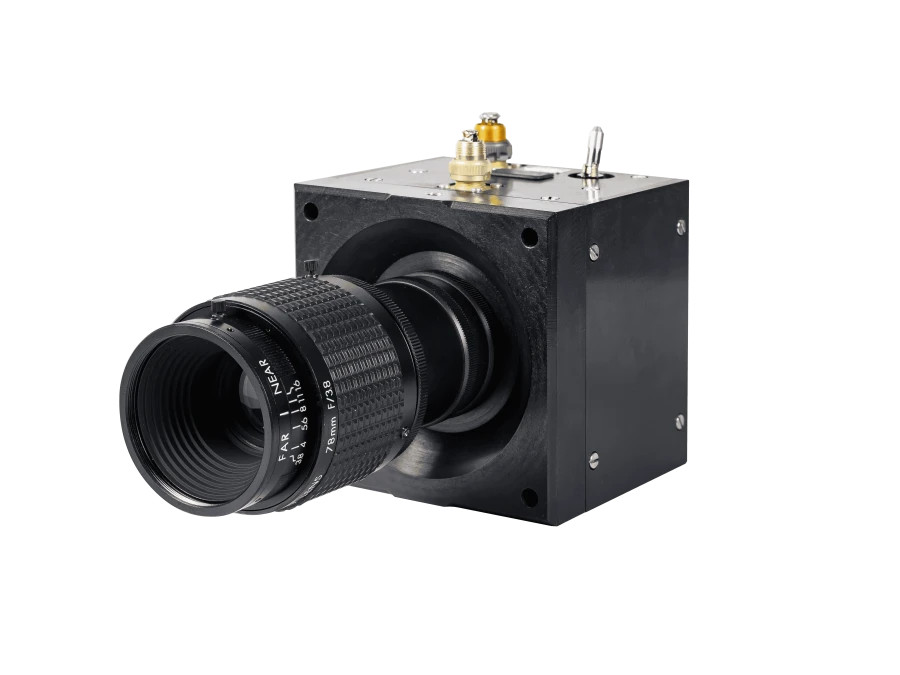

Universal Television Camera UTK-1 with CMOS Sensor

Available for Import

Universal Television Camera UTK-1 for Professional Video Production

Video Recording Equipment

Manufacturer: Electron OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The camera is based on a large-format CMOS sensor, illuminated from the back side, which is housed in a single ceramic-metal housing with an entrance window and a thermoelectric cooler (TEM). The device is evacuated and filled with xenon for more efficient cooling. Cooling of CMOS die with TEM allows to cool the die with a 40 C drop from the heat sink temperature even at 2 A current (instead of 3.9 A max).

This maximises sensor parameters in HDR mode such as sensitivity, dynamic range, resolution and minimum dark signal. The camera includes a clock generator board, which provides: the control diagram of the device in HDR and STD modes; supply voltages; data reception from the matrix; data transfer to a computer via USB 3.0 interface. General control of the device is carried out via COM port.

Advantages: increased sensitivity, high resolution, high shutter speed, the possibility of night shooting.

Specifications

Weight, max.

1800 year

Dimensions, mm

118x100x92

TEB power supply

0...10 V

Power supply of the camera (via USB interface)

5 V

Output signal digit capacity, bits

B1/B8 2100/900 MHz

Colorfulness

CHB

Frame rate (12 bit)

Resolution, pixels

2048x2048

Pixel size, µm

11 x 11

Shutter type

String (Rolling)

Sensor dimensions, mm

22,5 ? 22,5

Technology

KMOP (CMOS BSI)

Depth of the potential well, e

91 000

Quantum efficiency QE, not less

90% at 560 nm

Spectral sensitivity

200...1100

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
