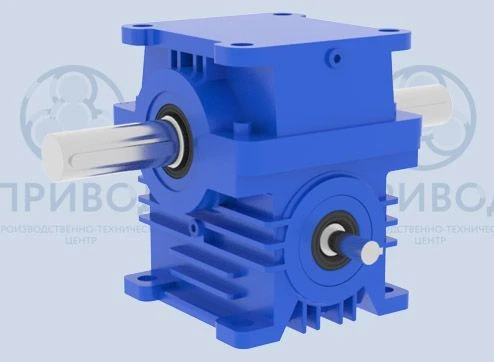

Universal Worm Gear Reducer 1Ch-80 for Torque and Speed Adjustment

The universal single-stage worm gearbox 1Ch-80 is a general purpose gearbox and is designed to change the torque and speed. Conditions of application of gearboxes: constant and alternating load of one direction and reversible; constant operation and with periodic stops; Shaft rotation in any direction; input shaft rotation speed not more than 1500 per min; ambient temperature from - 40°C to + 50°C; external environment - non-aggressive, non-explosive. Climatic execution U and T of categories 1-3 and climatic execution UHL and O category 4 according to GOST 15150-69. Unit designation 1 Ch-80-31,5-51-1- 1-C-C-2-U3 , where: 1- Order number of design development; Ch - Gearbox type - worm single-stage; 80 - Centre-to-centre distance; 31,5 - Gear ratio; 51 - Assembly variant according to GOST 20373-94; 1 - Gearbox mounting variant; 1 - Variant of worm pair arrangement; Ts- Variant of the high-speed shaft end design ( Ts -....
