Welding Generator GD-4004 PR U2 version 00

Available for Import

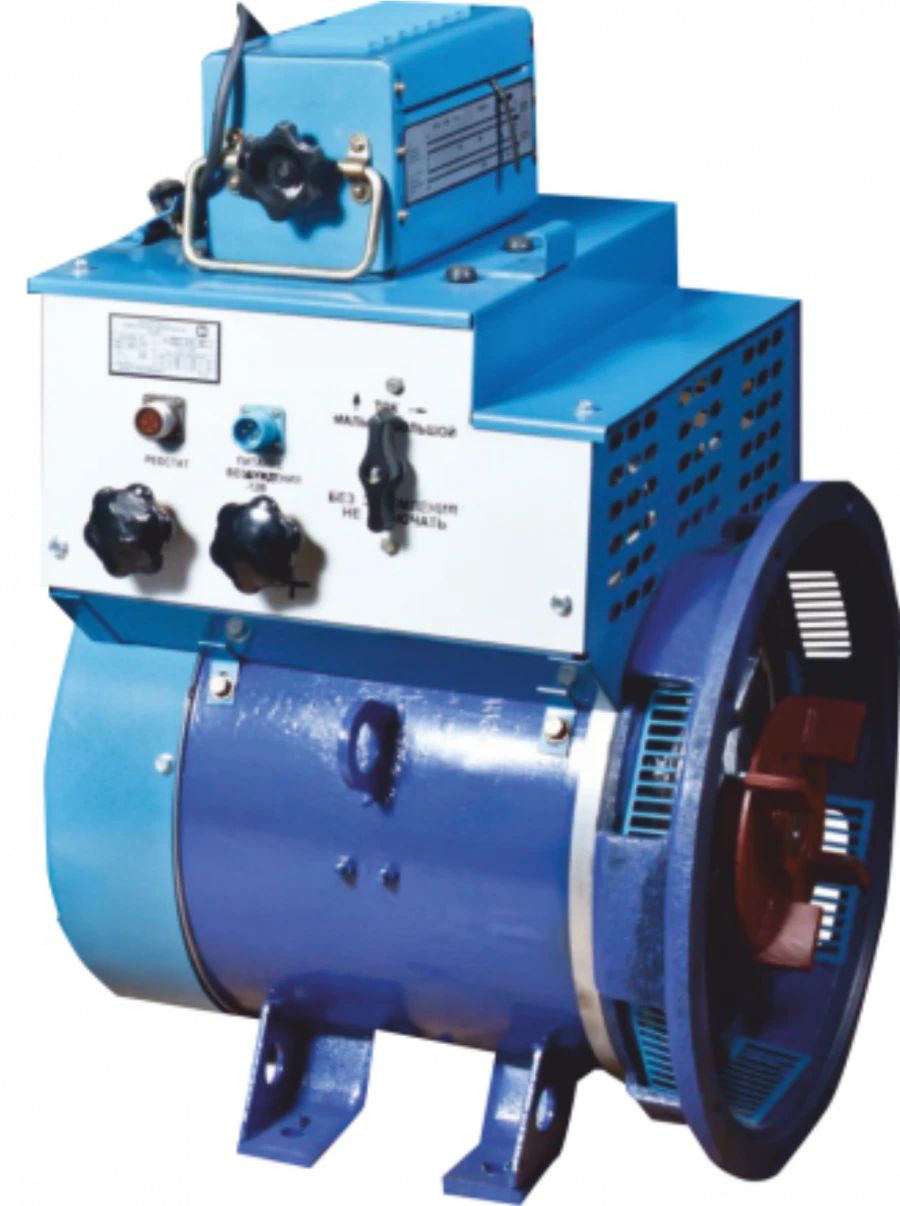

Welding Generator GD-4004 PR U2 for Arc Welding and Plasma Cutting

Electric Soldering & Welding Machines

Manufacturer: UZSNGU "ISKRA" LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

GD-4004 PR ?2 ???. 01

Description

Designed to supply one welding station for manual arc welding, cutting and cladding of metals with direct current with a melting electrode and manual air-plasma cutting of ferrous, non-ferrous metals and stainless steel with thickness from 0.5 to 20mm. Nominal parameters of the generator refer to its operation at an altitude of not more than 1000 m above sea level, in areas of temperate climate, relative humidity of not more than 75% at +15°C and ambient air temperature from -40°C to +40°C for welding and cutting with direct current piece electrodes; from +5°C to + 40°C for air-plasma cutting. The generator is used both indoors and outdoors. When working outdoors, the generator should be protected from direct exposure to solar radiation and atmospheric precipitation.

Specifications

Rated welding current at 60% RH

400 A

Rated welding operating voltage

NZ-150-14,5 V

Rated operating voltage of plasma cutting

70 V

Welding current control limits

60...430 A

Plasma cutting current control limits

40...160 A

No-load voltage during welding, no more than

Flat grinder, Specialised grinder V

No-load voltage during plasma cutting, max.

190 V

Load duration, PU

60 %

Nominal welding cycle time

Highest welding current at 100 % LOI

310 A

Highest welding current at 35% LOI

430 A

Efficiency factor, not less than

70 %

Drive motor power

33 kW

Rotational speed

1800...2000

Sound level at the reference radius of 3m, max.

Length

480 mm

Width

430 mm

Height

615 mm

Weight, not more

160 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
