Available for Import

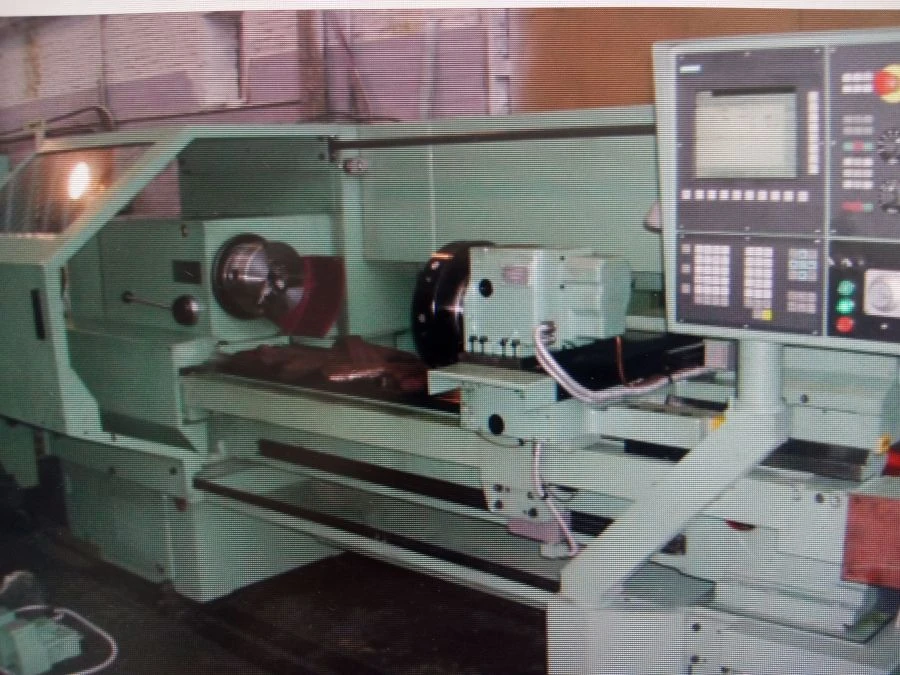

CNC Lathe Machine Model 16P25F3 for Precision Machining and Thread Cutting

CNC Metal Lathes

Manufacturer: RSZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

CNC lathe model 16R25F3 is designed for turning in centres and chuck parts with straight, stepped, curved profile and for thread cutting. Technical characteristics and rigidity of the machine tool allow to fully utilise the capabilities of high-speed and carbide tools. The range of control of spindle speeds and feeds allows the machining of products made of both conventional ferrous and non-ferrous metals and alloy steels.

Specifications

Machine weight, not more

4000 kg

Height

1920 mm

Width

1970 mm

Length

3650 mm

Type

cnc lathe

Height of the tool to be mounted

25 mm

Maximum longitudinal movement of the slide, not less than

830 mm

Maximum transverse movement of the slide, not less than

290 mm

Spindle speed limits

8...2000

Maximum length of the workpiece to be processed, not less than

700 mm

The largest diameter of the workpiece to be machined above the slide, not less than

290 mm

The largest diameter of the workpiece above the bed, not less than

500 mm

The largest diameter of the workpiece mounted above the bed, not less than

500 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
