CPC507-01 Processor Module with PMC/XMC Slots

Available for Import

CPC507-01 Processor Module - CompactPCI 6U for Advanced Applications

Mounted Circuit Boards

Manufacturer: DOLOMANT OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Processor module CPC507-01-COATED (IMES.467444.117-02)

Description

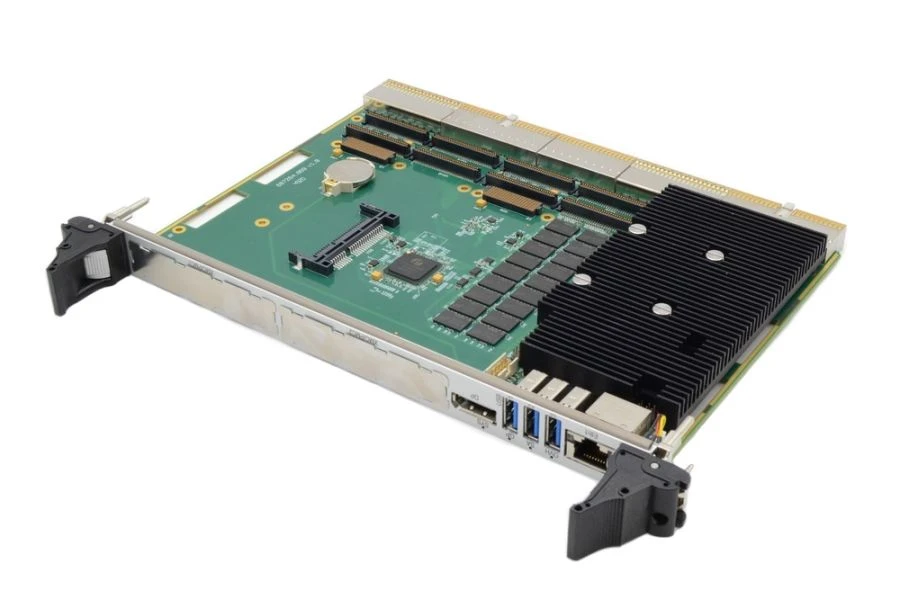

The CPC507 processor module is designed according to the CompactPCI standard, 6U format. Its most important feature is the presence of two PMC/XMC mezzanine pads. Due to the use of a single-chip solution based on SoC AMD FP5 APU (Ryzen Embedded V-Series) together with two mezzanine modules, the product can be used in compact and budget computing systems.

Specifications

Operating temperature

Minus 40 to plus 70 ºC

Power supply voltage

+3.3 V; +5 V, +12 V, -12 V

Software compatibility with OS

Linux Debian 10; Astra Linux Special Edition, Release "Smolensk" v1.5, v1.6; Microsoft Windows 10 IoT Enterprise 64bit

XMC/PMC expansion card support

Supports two PMC/XMC modules; 64-bit/66 MHz PCI-X bus is routed to P1-P4 PMC1 and PMC2 (ANSI/VITA 39, PCI-X for PMC and Processor PMC); PCIe x8 Gen3 bus is routed to P15 XMC1 (ANSI/VITA 42.3, XMC: PCI Express Protocol Layer), can be used with a PCIe x8 Gen

Hardware monitor

Implemented via SMBUS interface; monitoring of up to 7 supply voltages; board temperature monitoring at two points

Watchdog timer

From 30 µs to 512 c with program control option

Real Time Clock

USB ports

Support USB 2.0 (480 Mbps), USB 3.1 Gen 1 (5 Gbps); connect up to three devices via front panel connectors (USB 3.1 Gen 1)

3 LAN 10/100/1000 Mbit ports on PCIe x4 Gen2

Two channels are backplane mounted (PICMG 2.16); one channel is front panel mounted; Intel i350 server network adapter is used

SPI interface

FRAM support

CFast drive

SATA III 6 Gbps speed

Built-in SATA SSD storage

64 GB 3D NAND Flash (Pseudo-SLC); SATA III 6 Gbps interface

FRAM memory

32 Kbytes

PCIe bus

PCIe Gen3 (up to 8GT/s) brought out on P15 XMC connector with support for devices up to x8; it is possible to use x8 link in 2x4 mode, x4 links are brought out on P15 XMC1 and XMC2 connectors

PCI bus

Displayed on CompactPCI J1/J2 connectors; 64 bits/66 MHz; realized on PCIe->PCI-X bridge PI7C9X130; operation in peripheral slot (Non-transparent Bridge mode).

Video output

DisplayPort interface (resolution up to 4096x2160@60Hz) is on the front panel

RAM

DDR4-2400 SDRAM with ECC: 16GB; 64-bit data bus

Processor

AMD Ryzen Embedded V1404I SoC APU 2.0 GHz 25W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
