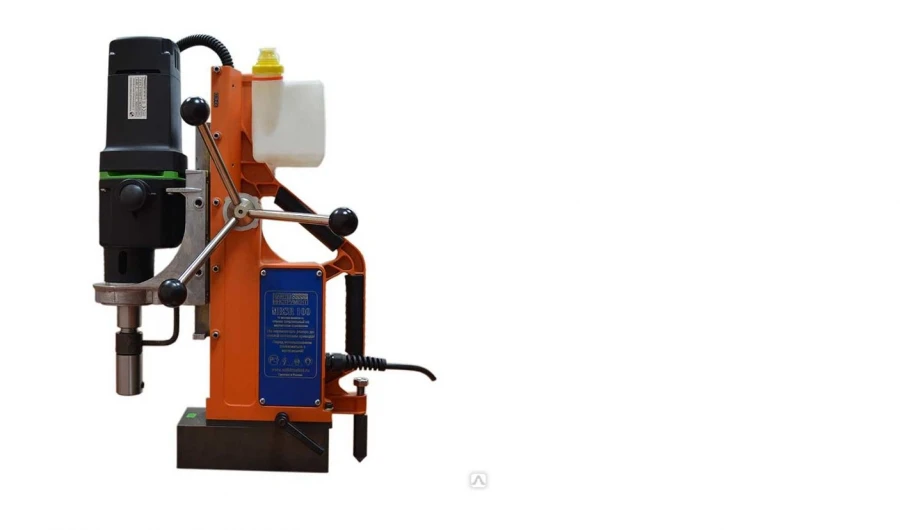

Electromagnetic Drill and Tapping Machine MBR-100 for Precision Metalworking

The drilling and thread-cutting machine on the electromagnetic tripod MBR-100 has not only a powerful drive with soft start and two-speed gearbox, but also a special regulator, turning which the operator chooses the right power for taps of different diameters. These features make it possible to cut through and blind threads without the use of a threading chuck. Only inexpensive adapters are required to fit the taps into the Weldon19 socket.

The main feature of this model is the double dovetail guides. This allows the available drill stroke range to be extended to a previously unimaginable 320 mm. An important feature of the drill and thread cutting machine is the ability to work at extremely low speeds without loss of power.

This functionality is provided by a full-wave speed controller. This module is equipped with a tachogenerator and automatically maintains the required power.
