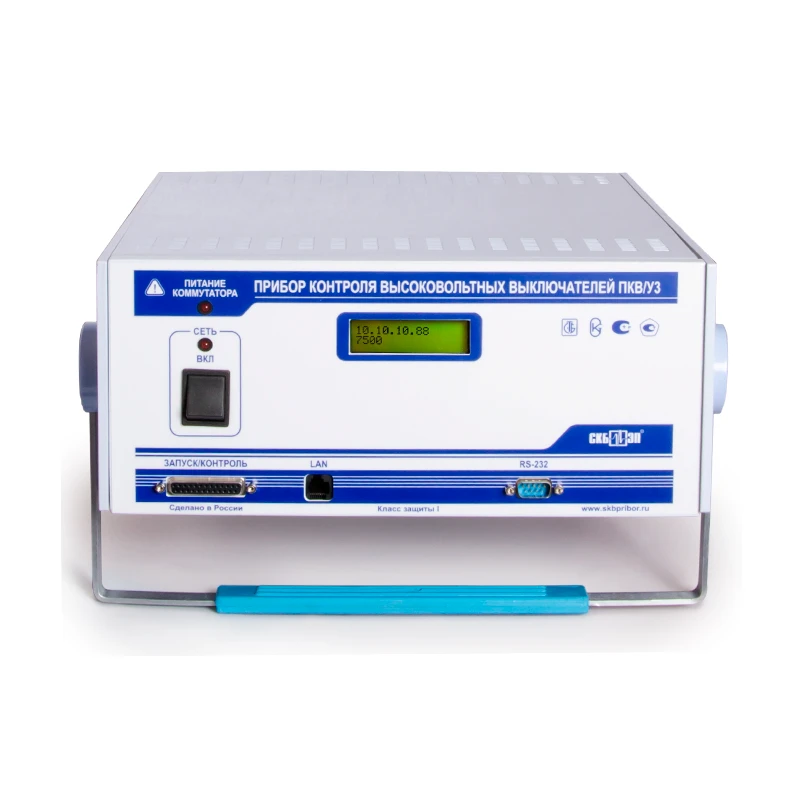

High Voltage Circuit Breaker Monitoring Device PKV/U3.0 (Modification PKV/U3.1)

Available for Import

High Voltage Circuit Breaker Monitoring Device PKV/U3.0 for Reliable Diagnostics

Advanced Inspection Devices

Manufacturer: SKB EP LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The software and hardware complex is designed to determine by methods of non-destructive diagnostics of the technical condition of high voltage circuit breakers, high voltage circuit breakers, both domestic and foreign (ABB, AREVA, ALSTOM, SIEMENS, etc.), as well as isolators and short-circuit breakers. The device allows simultaneous measurement of time, stroke and speed parameters of moving parts, measurement of time to closing/opening of controlled contacts and registration of instantaneous values of currents and voltages of control electromagnets. The device allows to carry out control simultaneously on three phases, thanks to the possibility of retrofitting the device with additional movement sensors, which saves time for diagnostics, because it will take only 1 operation B / O instead of 3. The results of object diagnostics are displayed in the form of a table with measured and calculated parameters for each operation.

Specifications

Weight

10 kg

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing

Inspection period

3 year

Temperature range when operating the device

-15 °C to +40 °C °C

Environmental protection

IP20

PC communication

LAN and RS-232

Maximum switched current

Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording A

Power switch cycles

O, V, O-Tp-V, V-Tzo-O, O-Tp-V-Tzo-O.

Measuring range of travel speed

0.002 ÷ 20 m/s

Angular displacement measuring range

0,09° ÷ 360°

Measuring range of linear displacements

0,0004 ÷ 8 ?

Number of resistive sensor channels

B1/B8 2100/900 MHz pcs

Number of motion sensor channels

3 pcs

Number of discrete channels for monitoring the switch contacts

20 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
