Multicore thermoelectrode cable with single-wire
Manufacturer:
REЖКАБЕЛЬ LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Multi-Core Thermoelectric Cable KMTVng(A)-LS
Multicore thermoelectrode cable with single-wire and multi-conducting conductors in cold-resistant version, m
Multicore thermoelectrode cable with single-wire conductive cores, KMTBVTng(A) grade
Multicore thermoelectrode cable with single-wire conductive cores, KMTBVng(A) grade
Multicore thermoelectrode cable with single-wire conductive cores, KMTV brand.
Description

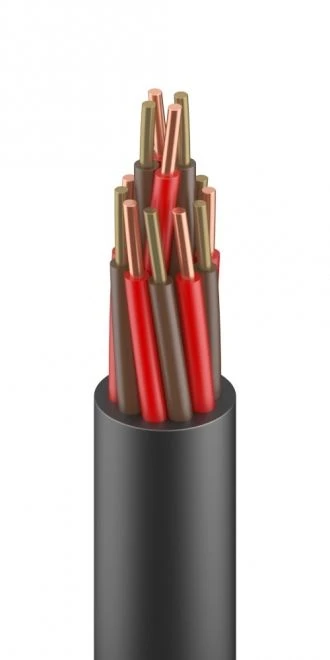

Cable thermoelectrode with conductive cores of metal and alloy or alloy pair with nominal cross-section from 0,75 to 2,5 mm2, with number of cores and pairs from 2 to 36, heat-resistant with polyvinylchloride insulation and polyvinylchloride sheath of insulating heat-resistant plastic. They are intended for fixed connection of thermoelectric converters (thermocouples) to measuring instruments.
Specifications
Operating temperature range
-40...105 °C
Electrical insulation resistance, recalculated per 1 km of length under normal climatic conditions, not less, MOhm
5000
AC voltage test with nominal frequency of 50 Hz for 5 minutes between cores
1000 V
Nominal voltage
380 V
Designation of copper and alloy or alloy pair
CA - Chromel-alumel
