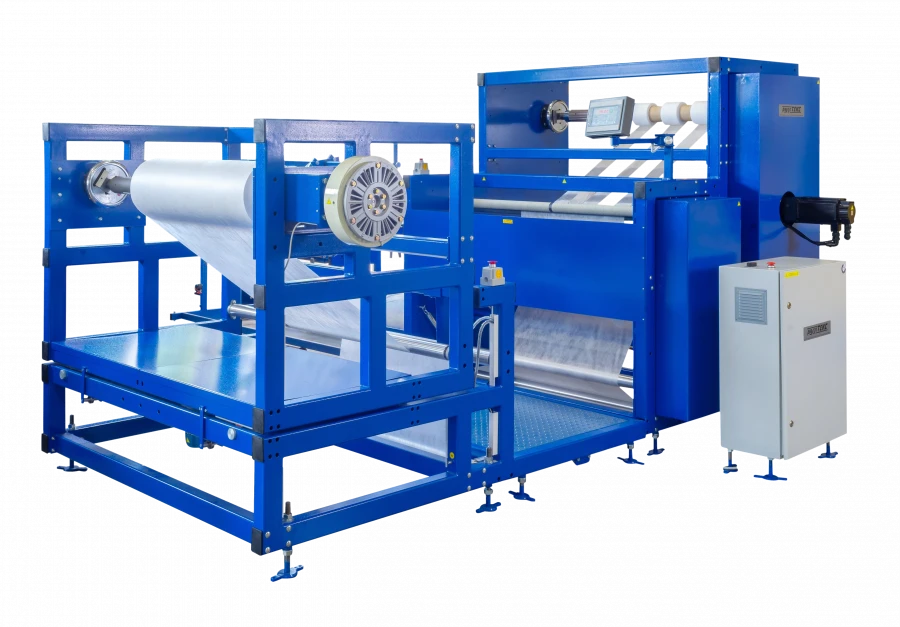

Rolltex B03.2 Longitudinal Slitting Machine for Efficient Material Processing

Textile Processing Equipment

Manufacturer: ROLLTEX LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The B03.2 bale slitting machine is designed for rewinding from bale to bale, longitudinal cutting of material into strips with width from 100 mm and length measurement. The machine for slitting rolls provides rewinding of rolls of materials with thickness up to 8 mm, diameter up to 1000 mm and weight up to 500 kg into rolls with diameter up to 600 mm and total weight up to 150 kg. Available in roll widths up to 1600 mm and 2100 mm. 5 sets of cutting knives are included as standard

Specifications

Mark

Rolltex

Type of materials to be rewound

inelastic, woven and nonwoven. material thickness not more than 8 mm. material density not less than 25 g/m2.

Diameter of uncoiled bale

1000 mm

Unwind bale weight

500 kg

Diameter of winding bales

600 mm

Weight of winding bales

150 kg

Minimum width of the strip to be cut

100 mm

Pneumatic expander shafts

Included: 1 unwinder for 76mm bobbin and 2 winders for 76mm bobbin.

Disc knives (knife, counterknife)

Comes with 5 sets of knives (knife + counter knife)

Ruler for setting the knives to the required width

as standard. the ruler is located in the cutting unit area.

Operator panel

sensory

Unwind bale edge alignment function

necessary for aligning the material in width before feeding the material into the cutting zone. edge alignment is performed by the carriage with left-right movement according to the sensor readings. the left-right movement of the carriage is ±10 cm, thus t

Emergency buttons

As standard

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
