Semi-Automatic Hydro Testing Unit for Well Equipment Components - Ensure Safety and Reliability
Manufacturer:
INTERTEK LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

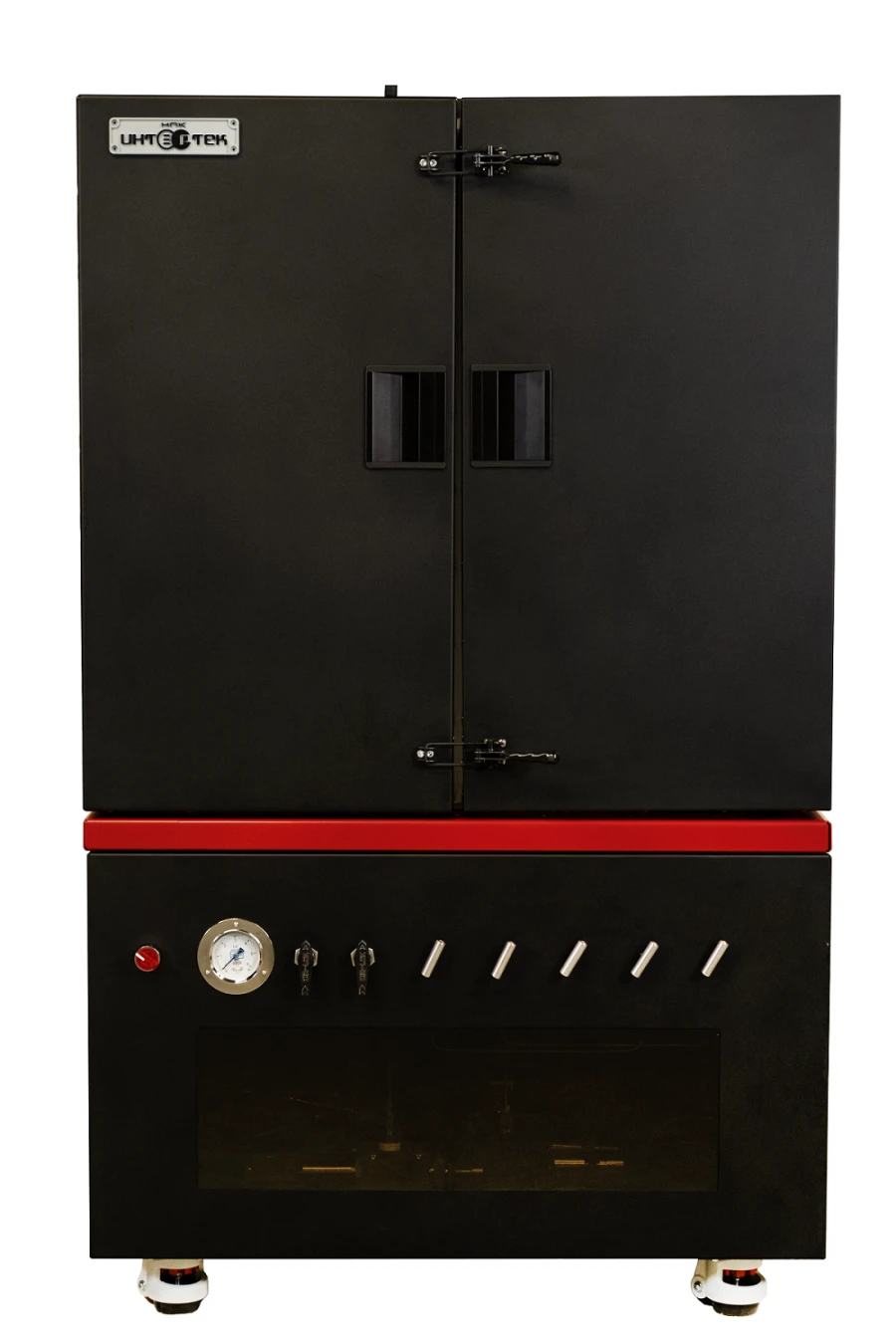

Semi-automatic unit for hydro-testing of downhole equipment units is designed to evaluate the time of tight shut-in of the soluble valve block for multistage hydraulic fracturing. The product is a housing with thermostatised volume, in which the test cell is installed. The hydraulic system and control elements are located in the base of the housing.
Specifications
Assignment
For estimating the time of tight shut-in of soluble valve block for multistage hydraulic fracturing
Maximum working pressure of pumps
100 MPa
Type of pumps
Pneumohydraulic booster
Number of pumps
2 pcs
Pump operating mode
Creation of overpressure
Maximum operating pressure of the cell
100 MPa
Accuracy of overpressurisation of the cell
3 %
Operating medium
Saline solutions up to 30% KCl
Material of parts in contact with the medium
stainless steel
Temperature maintenance system
Thermostatically controlled volume and individual cell heating
Operating temperature range
25...125 °C
Basic error of temperature measurement
3 °C
Cell type
Adaptive
Maximum operating temperature of the cell
125 °C
Control system
Software control of heating and overpressure generation for personal computers
Data collection
Digital pressure sensors, temperature sensors; data storage on personal computer
Overall dimensions, approximate, (length x width x height) excluding protruding parts
780 mm
Weight
300 kg
Type of product according to PP RF 616
Other tools and instruments for measurement, inspection and testing
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
