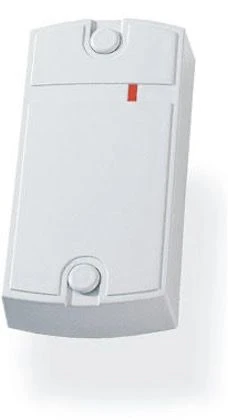

RFID Reader 13.56 MHz for Access Control - Model Matrix-II (MF-I)

Electrical Interface Devices

Manufacturer: OTK LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

It is used in access control and management systems (ACS) to transmit to the controller code, brought to him the identifier (card, fob, bracelet, etc.) standard Mifare on protocols iButton (Dallas Touch Memory) or Wiegand 26/34/42/50/58. A distinctive feature of the reader is the support of "IronLogic - Protected" technology, which provides reliable protection of cards from cloning. To realise the protected reading technology, apart from Matrix-II reader (mod. MF-I) you will need Z-2 USB MF reader (with special firmware), Iron Logic Object card and blank cards (fobs) of Mifare standard to create pass cards.

Specifications

Operating frequency

13.56

Type of identifiers used

Mifare

Reading range

3...6 cm

Output interface

Ibutton (Dallas Touch Memory), Wiegand 26/34/42/50/58

Maximum line length from reader to controller: Dallas Touch Memory

No more than 15 m

Maximum line length from reader to controller: Wiegand

Not more than 100 m

Light and sound indication

Got it

External control of LED and sound

Got it

DC supply voltage

B1/B8 2100/900 MHz V

Current consumption in card standby mode

Not more than 40 mA

Dimensions

85x44x18 mm

Housing material

ASB plastic

Operating temperature

-40...50 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
